Watchdog Automation completed a chiller plant integration project involving Chillers 1, 2, and 3. The work integrated the chiller system with a Siemens S7-1200 PLC using Modbus communication and connected the automation platform to a SCADA-based monitoring and control system.
The project enabled real-time acquisition, visualization, storage, and analysis of chiller operating data. Through the SCADA interface, operators and maintenance personnel can monitor equipment status, alarms, operating conditions, performance trends, and historical records from a centralized platform.
The system was also designed with internet-based connectivity, allowing authorized users to remotely view chiller operating data, acknowledge alarms, review performance trends, and support maintenance planning without relying only on local inspection.
The integration covered PLC communication, SCADA development, real-time data acquisition, alarm and event handling, remote monitoring, historical storage, and reporting functions for the chiller plant.

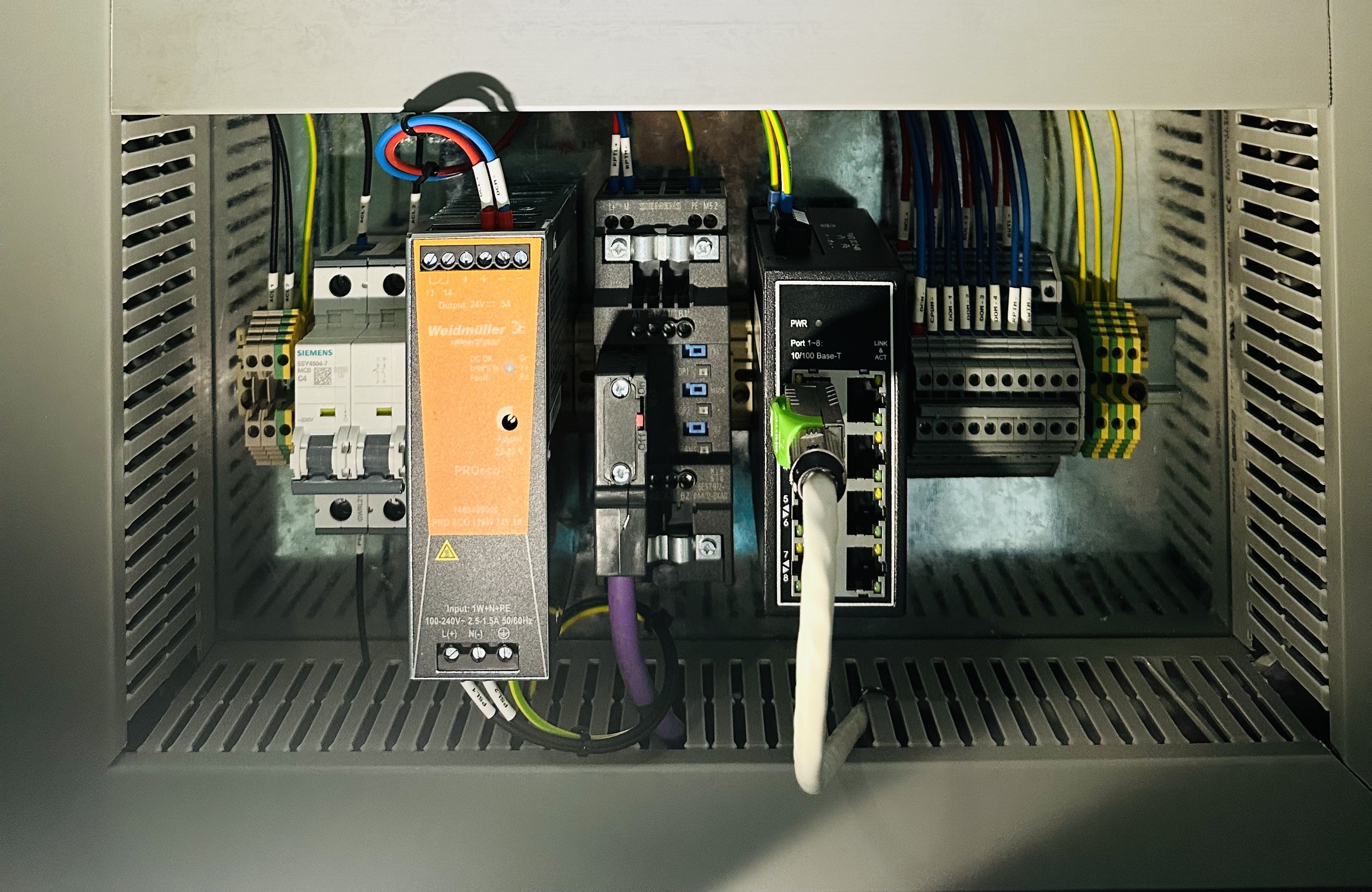

This scope focused on integrating Chillers 1, 2, and 3 with a Siemens S7-1200 PLC. Modbus protocol was used as the communication method between the chiller equipment and the PLC, allowing operating data and equipment status to be collected through the automation system.
The PLC served as the central data acquisition and communication point for chiller operating parameters. The integration allowed the SCADA system to access live equipment data, making the chiller plant easier to monitor, diagnose, and supervise from a centralized interface.

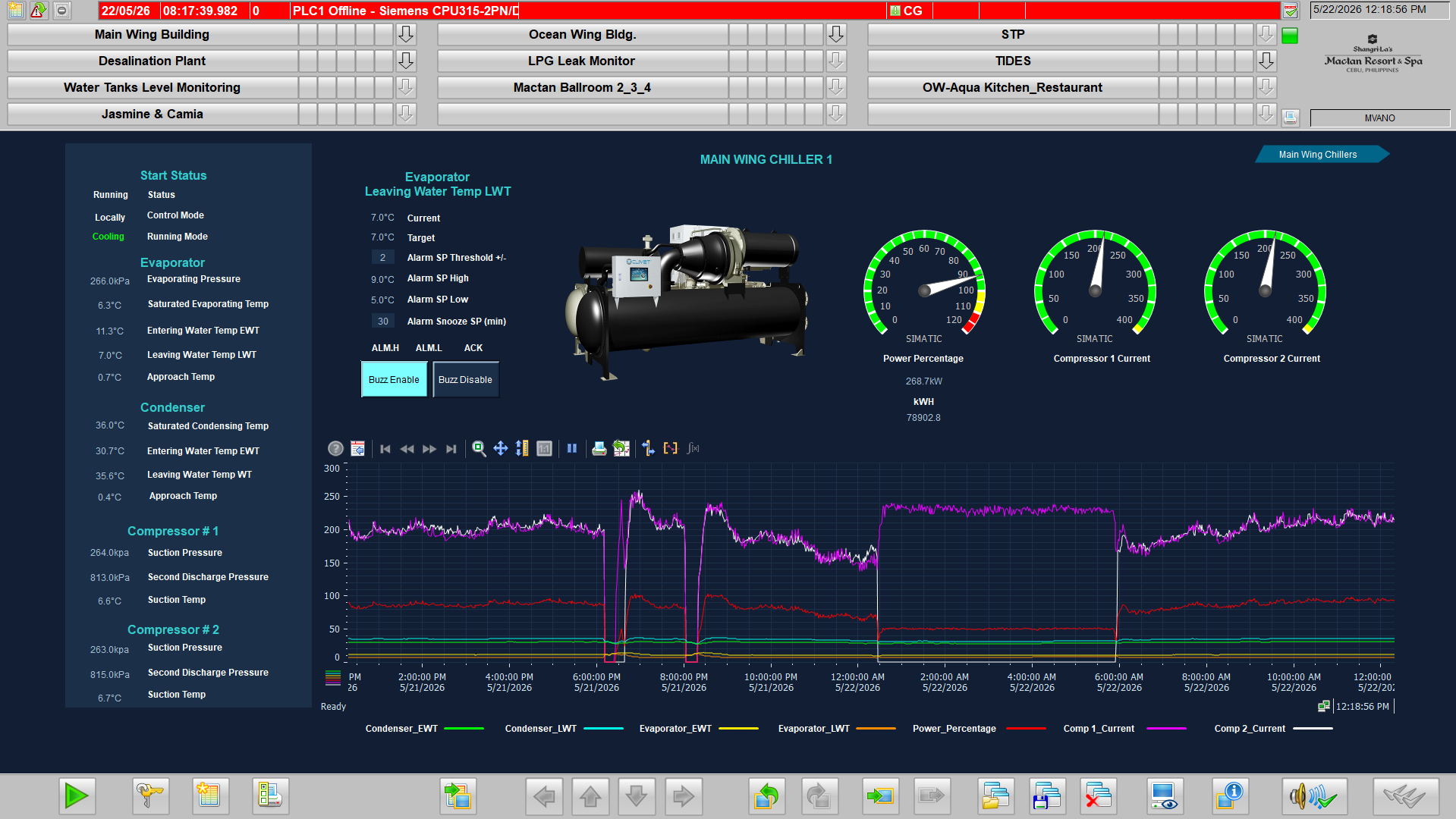

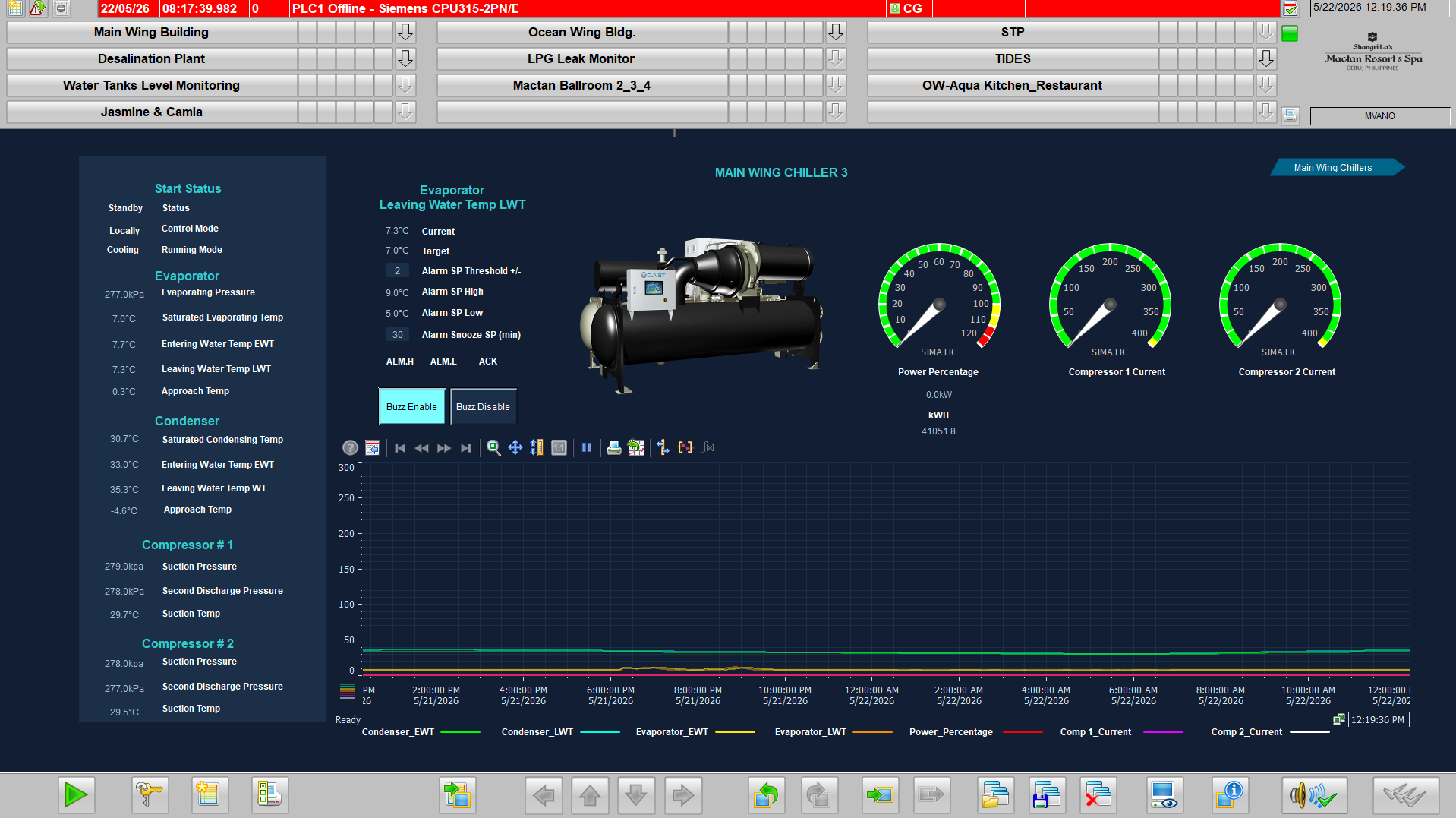

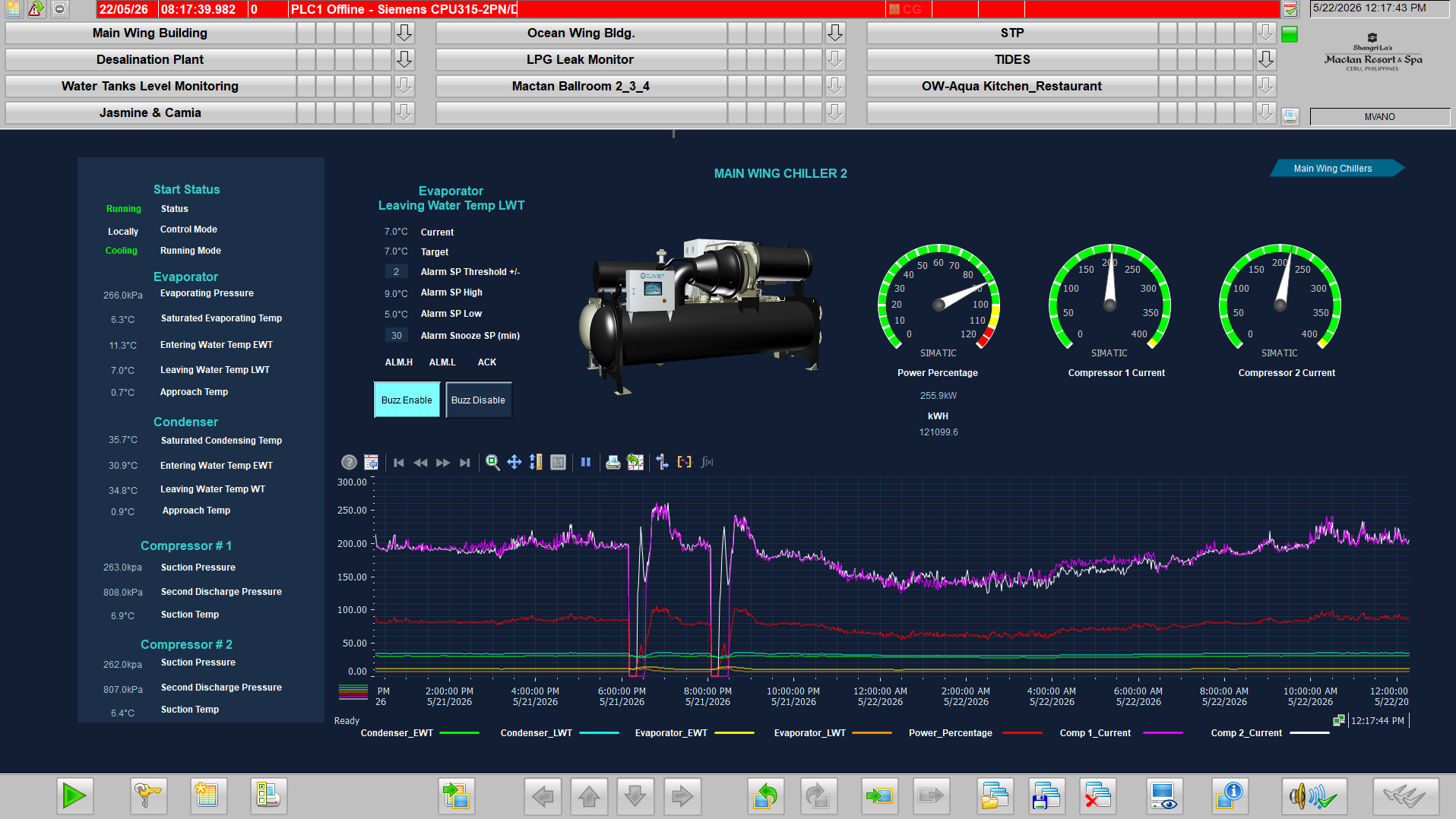

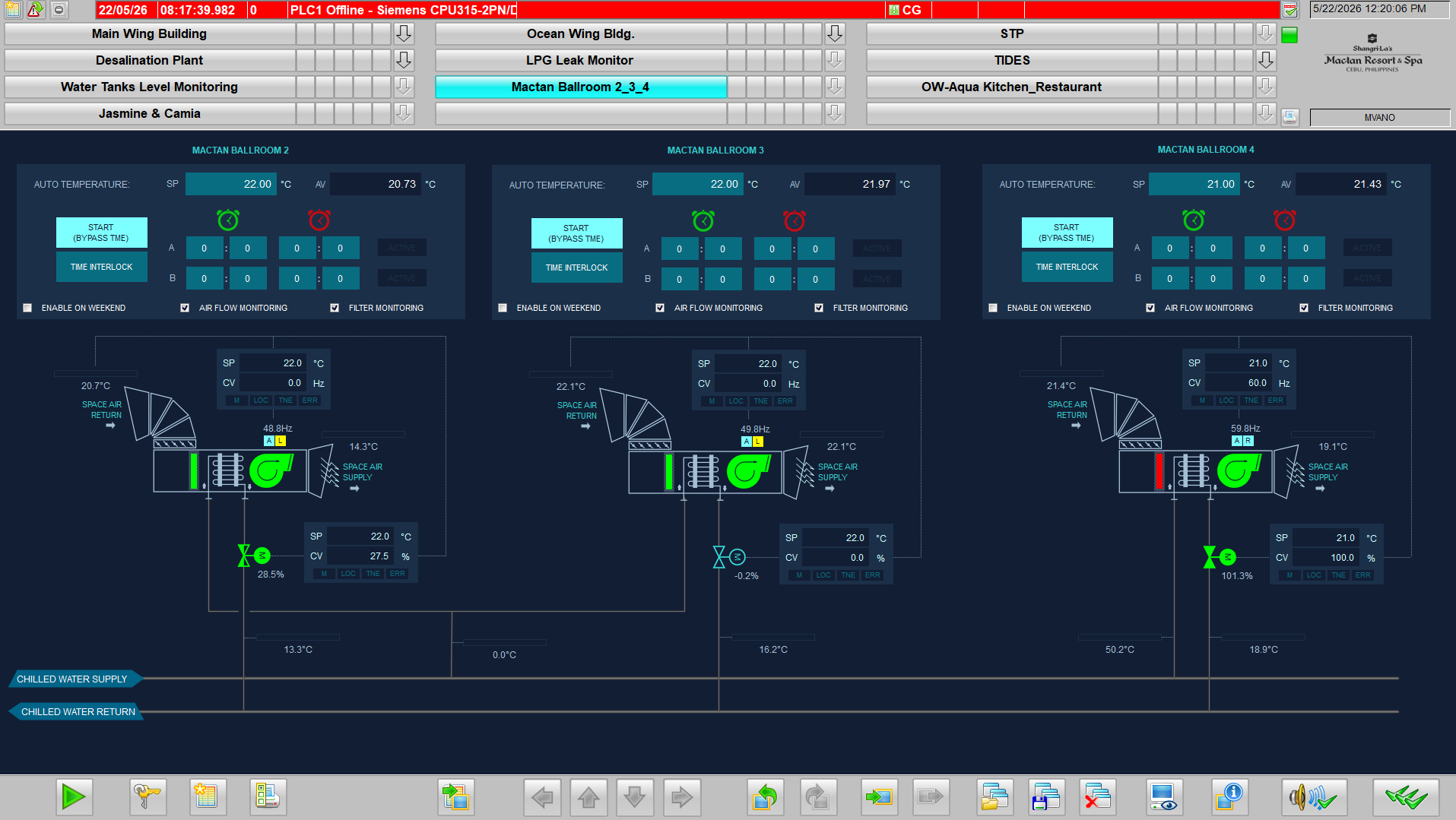

A SCADA-based monitoring and control system was developed to provide centralized supervision of the chiller plant. The SCADA interface allows users to view real-time equipment status, operating conditions, alarms, and performance indicators from a single monitoring platform.
The system supports real-time visualization of chiller data, including run/stop status, compressor operating status, chilled water supply and return temperatures, condenser water conditions, water pressure and flow status, fault conditions, operating hours, runtime, energy consumption, and performance indicators.
The project implemented alarm monitoring, event logging, historical data storage, trend analysis, and reporting functions. These features allow plant personnel to review equipment behavior, identify operating abnormalities, and analyze system performance over time.
Historical records and trend data support troubleshooting, maintenance planning, and operational review. Reports can be generated for chiller operation, alarms, system events, runtime, and energy performance analysis.
The PLC and SCADA system were connected to an IP-based network to support internet communication and remote monitoring. Authorized users can remotely view chiller operating data, equipment status, alarms, and performance trends from workstations or mobile devices.
Remote access reduces the need for repeated on-site inspection and allows faster fault response. The system also supports remote viewing of historical data, alarm acknowledgment, diagnostics, and maintenance-related information.
The completed system provided centralized visibility and control of the chiller plant through Siemens PLC integration, Modbus data communication, SCADA visualization, alarm handling, event logging, historical trending, reporting, and remote monitoring capability.
The project improved operational visibility, fault response, maintenance efficiency, condition monitoring, energy performance tracking, and overall facility management by turning chiller operating data into accessible and actionable information.
